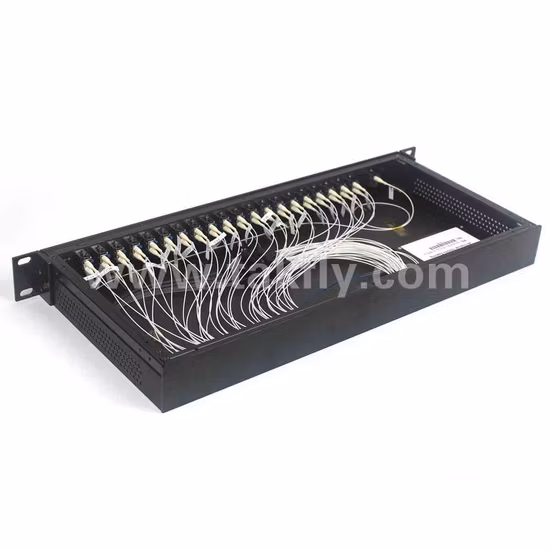

40CH 100g Fixed Rack Mount Type Fiber Optic CWDM DWDM

Basic Info.

Model NO.	DWDM
Condition	New
Delivery Time	3 to 5 Days After Payment
Place of Origin	Guangdong, China (Mainland)
Logo	Customized
Packaging Details	One PCS Each Box
Warranty	10 Years
Weight	3kg
Dimension (mm)	19 1u Rack
Application	Fiber Optical Amplifier
Product Name	40CH Rack Mount Type 100g DWDM
Transport Package	Carton
Specification	Wdm System
Trademark	Takfly
Origin	Shenzhen, China
Production Capacity	50000PCS/Week

Product Description

40CH 100G Fixed Rack Mount Type Fiber Optic CWDM DWDM
Features:
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Applications:
Channel Add/Drop
DWDM Network
Fiber Optical Amplifier
Performance Specifications:

Parameter		4 Channel		8 Channel		16 Channel
		Mux	Demux	Mux	Demux	Mux	Demux
Channel Wavelength(nm)		ITU 100 GHz Grid
Center wavelength Accuracy(nm)		±0.05
Channel Spacing (GHz) GHz)		100
Channel Passband (@-0.5dB bandwidth) (nm)		≥0.22
Insertion Loss		≤1.6		≤2.5		≤3.5
Channel Uniformity		≤0.6		≤1.0		≤1.5
Channel Ripple		0.3		0.3		0.3
Isolation	Adjacent	N/A	>30	N/A	>30	N/A	>30
	Non-adjacent	N/A	>40	N/A	>40	N/A	>40
Insertion Loss Temperature Sensitivity (dB/ºC)		≤0.005
Wavelength Temperature ShiftingºC)		<0.002
Polarization Dependent Loss(dB)		<0.1
Polarization Mode Dispersion(PS)		<0.1
Directivity(dB)		>50
Return Loss(dB)		>45
Maximum Power Handling (mW)		500
Operating Temperature(ºC)		-5~+75
Storage Temperature(ºC)		-40~85
Package dimension(mm)		1. L100 x W80 x H10 ( 2 CH~8CH Module) 2. L140xW100xH15 (9 CH~18CH Module)) 3. 19 1U Rack

Above specification are for device without connector
Order Information:

Configuration	Channel No.	Channel	Pigtail Type	Fiber length	Dimension(mm)	Connector
M=Mux D=Demux	04=4 Channel 08=8 Channel 16=16 Channel N=N Channel	C20= 1561.42 nm C21= 1560.61 nm	0=250um 1=900um 2=2.0mm 3=3.0mm	1=1m 2=1.5m 3=others	1= L100 x W80 xH10 2=L140xW100xH15 3=19 1U Rack	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others

Any question about this CWDM/DWDM, please leave me an inquiry or contact me directly.
